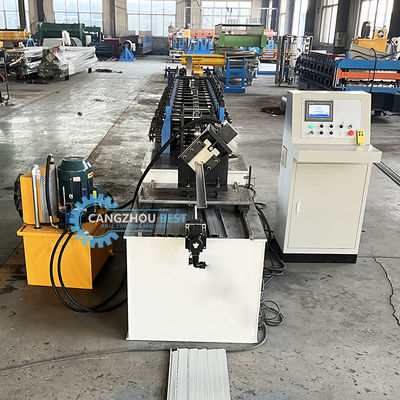

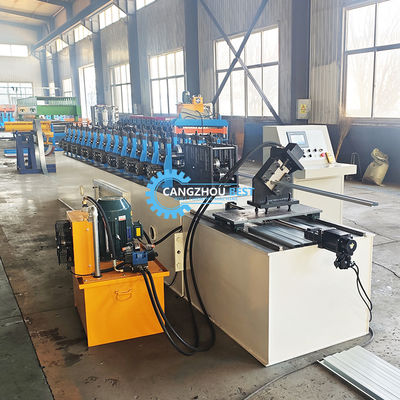

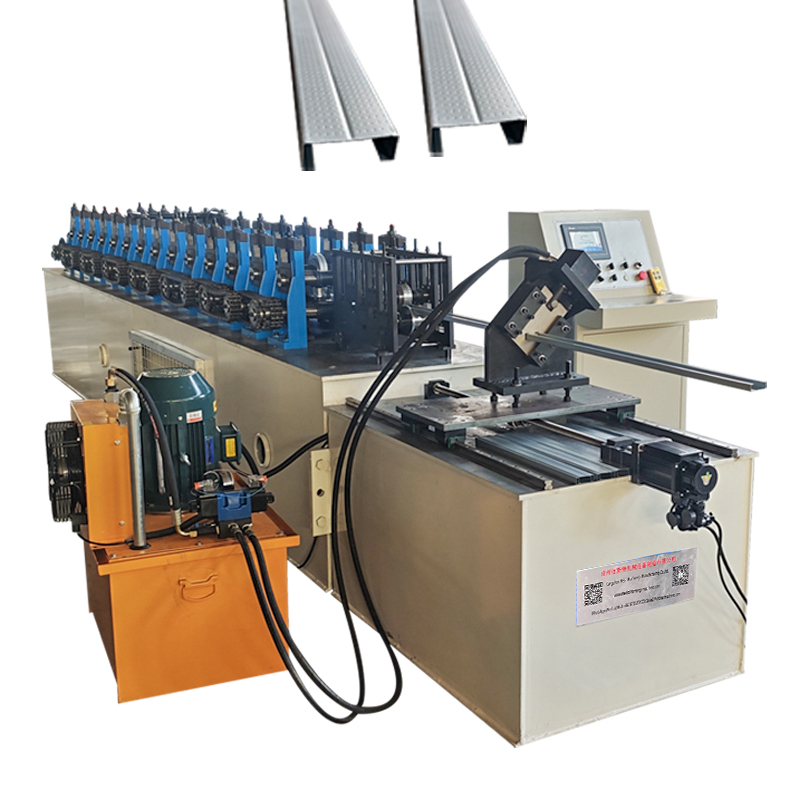

High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine

High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine
High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine

Ampliación de imagen :  High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine

Datos del producto:
Lugar de origen: China Hebei
Nombre de la marca: CHBEST
Certificación: CE/BV/SGS
Número de modelo: XY50x24
Pago y Envío Términos:
Cantidad de orden mínima: 1 set
Precio: 9500
Detalles de empaquetado: Película de plástico para máquina desnuda
Tiempo de entrega: 30-40 días
Capacidad de la fuente: 20 sets/mes

High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine

descripción
Nombre del producto: Gyle Gypsum Metal Stand y rollo de rollo de rollo de rollo de quilla de acero ligero Sistema de control: SOCIEDAD ANÓNIMA
Tipo de corte: el vuelo consideró Garantía: 2 años
Vida: 10 años Material de rodillo: cr12 movimiento
material de eje: 45#acero
Resaltar:

high-speed drywall metal stud machine

,

steel track roll forming machine

,

drywall profile roll forming machine

High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine

Light steel keel, it is a kind of new building materials, with the development of modernization construction.light steel keel is widely used in hotel ,terminal building,car depot,station,Amusement Park,mall,factory,office building,old building renovation, indoor decoration set,ceiling ,etc.

Light steel keel is with the features of lightweight, highstrength, waterproof,shockproof, dustproof,soundproof,sound absorption,constant temperature;also with advantages of short limit time and easy installation.


Working flow


Decoiler------feeding------roll forming-------cut to length-----output table


Profile Drawing

High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine 0High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine 1



Machine Components


Name Quantity(set)

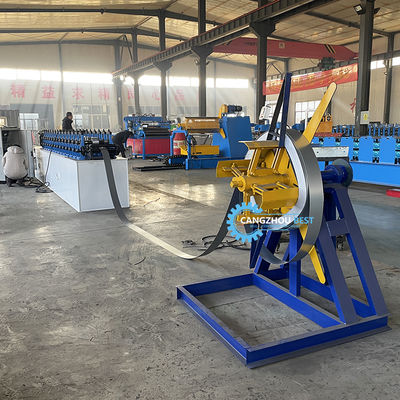

De-coiler 1
Feeding guiding Device 1
Roll Forming Part 1
Hydraulic cutting Device 1
Computer control box 1
Hydraulic System 1
Run-out table 1


Parameter


Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control.
Control System PLC Panasonic Inverter
Main Frame 350mm H-Beam
Main Power 5.5 kw
Pump Power 3kw
Power Supply 3-Phase,380V,50Hz
Forming Speed 12-14m/min
Hydraulic Pressure 18-20MPa
Forming Size 80mm
Feeding Thickness 1.5-3.2mm
Roller Station 12 Stands
Roller Diameter 60mm
Backboard Thickness 16mm
Chain Size 66mm
Cutter Standard Cr12
Roller Standard Cr12
Cr-Plating Size 0.05mm
Overall Size 9500×1400×1350mm
Total Weight 6T



Working conditions
1.Machine size 10m x 1.2m (L XW)
2.Working size 20m x 2.5m (LXW)
3.Power supply 8.5kw
4.Frequency 50-60HZ
5.Wires/cables 4-6mm²(length according to workshop)
6. Labor cost 2 workers
7. Tools Spanners and screwdriver
8.Lift device 3-5t forklift or crane


High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine 2

High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine 3

High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine 4
